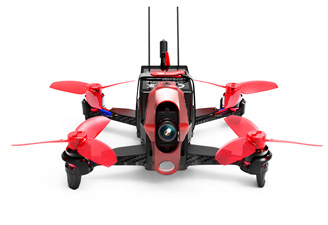

Click image to view original
Specifications
Main Rotor Dia 70mm
Overall (L x W x H) 101 x 117 x 55mm
Weight 101g (Battery excluded)
Remote Controller DEVO 7
Receiver/Main Controller Rodeo 110
Transmitter TX5836(FCC)/TX5837(CE)
Brushless Motor WK-WS-13-002
Brushless ESC Rodeo 110
Battery 7.4V 850mAh 25C 2S Li-Po
Flight Time 7~8mins
Working Temperature -10℃~ +40℃
Camera(600TVL)
Horizontal Resolution 600TVL
System Committee PAL/NTSC
Video Out 1.0Vp-p/75Ω
Power Input DC 5-12V
DEVO 7 remote controller
Frequency 2.4GHz DSSS
Output Power ≤100mW
Current drain ≤230mA(100mW)
Power Supply 5# Battery 8x1.5V or NiMH 8x1.2V 1600-2000mAh
Output Pulse 1000-2000mS(1500Ms Neutral)
TX5836(FCC) / TX5837(CE) transmitter
5.8G wireless image transmission
TX5836(FCC) Bind B section: 8 channels
TX5837(CE) B section: 8 channels
TX5836(FCC) output power ≤200mW
TX5837(CE) output power ≤25mW
