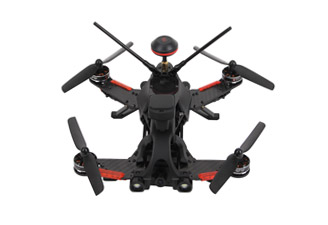

Aircraft
Main Rotor Dia 127mm
Overall (L x W x H) 168 x 209x 71.5mm
Weight 375g(excl.battery)
Remote Controller DEVO 7
Receiver DEVO-RX721
Flight Controller FCS-F215
5.8G transmitter TX5838(FCC)/TX5839(CE)
Brushless Motor WK-WS-28-017(2500KV)
Brushless ESC Furious 215 ESC
Battery 14.8V 1300mAh 60C 4S LiPo
Flight Time 8~9mins
Working temperature -10℃~ +40℃
Camera
Lens 2.5mm
Image Sensor 1/3″ Sony SUPER HAD Ⅱ CCD
Horizontal Resolution 600TVL
Integrated MIC Yes
WDR D-WDR
DNR 2DNR
Day/Night Color/Auto/B&w
Power 5V~17V
DEVO 7 remote controller
Frequency 2.4GHz DSSS
Output power ≤100mW
Current consumption ≤230mA(100mW)
Power Supply 5# Battery 8x1.5V or NiMH 8x1.2V 1600-2000mAh
Output Pulse 1000-2000mS(1500Ms Neutral)
TX5838(FCC) / TX5839(CE) transmitter
5.8G wireless image transmission
TX5838 B-band 8-channel selection
TX5839 B-band 8-channel selection
TX5838 output power≤200mW
TX5839 output power≤25mW
