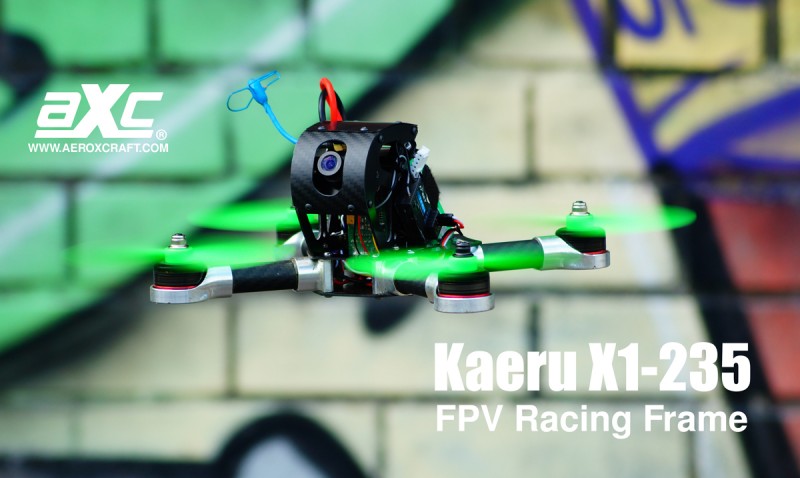

The Kaeru X1 is the new FPV racing frame from Aeroxcraft.
After many design iterations and testing we hit all the design criteria and the “Kaeru X1” was born. We thought it looked like a little frog and so we named it after the Japanese Kaeru good luck charm. The “X1” is because it is the first in a series of X configuration frames. There are more frame designs on the way for slightly different purposes that are all based on the same carbon/aluminium arms.
Intended for use with:
5” props
2204/2205/2206 motors
Up to 4S 1400mah battery
Features:
Tubular arms with room for ESC inside
FPV Camera easily adjustable from 0-45deg
FPV camera protected from impacts
Small cross section of the quad in fast forward flight in order to minimise aerodynamic drag
235mm Diagonal motor to motor
Totally square between the motors
Centre of gravity in the dead centre of the frame
Centre of gravity near the plane of the propellers for flight balance
Allow plenty of room for the battery, flight and FPV gear. Will fit Fatshark size VTX.
Incredibly strong, rigid and light
Tubular Arms
We developed our unique tubular carbon fibre and aluminium bonded arms for the Kaeru and they are integral to its design. We chose to bond the arms together rather than using fasteners to save weight and give a cleaner look. The bonding process we have developed results a very strong join and in destructive testing we find that the carbon tube fails before the bonding fails. The carbon fibre arm tube has an internal diameter of 14mm which allows the ESC to fit inside. We've been using the 20amp Little Bee ESC which we've found to be perfect. The tubular arms help to maximise the thrust from the props as the airflow over the arm is much smoother than with a flat plate style arm. From our testing we reckon there's up to 10% more thrust with this style of arm.
More information, photos and video coming soon..
Specification:
235mm X-Configuration FPV Racing frame
Materials: Carbon Fibre, Aluminium, G10 Laminate
160 grams
High Quality hardware/fastener pack included
frame kit only. Other components will be needed for flight
Designed and manufactured in the UK exclusively by Aeroxcraft.
Details:
Model: KX1-235
Manufactured by: Aeroxcraft
