MEDIUM RANGE TRACKING ANTENNA
The Marcus UAV Corp. Medium Range Tracking Antenna System is designed to provide the ultimate in portability. Enabling reliable, high quality video and telemetry delivery between your UAV and the ground control station.
Our medium range tracking antenna has demonstrated the ability to provide quality real-time video at a range of up to 9 miles. Using telemetry data transmitted from the UAV the set of patch antenna automatically points to the Unmanned Aircraft wherver it is in the sky. A diversity receiver and 8dbi omnidirectional antenna provide a failsafe for the video signal.

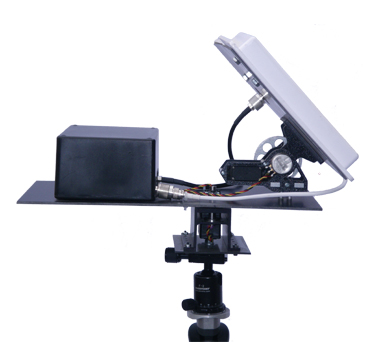

Tracking antenna is designed for high wind loading the pan/tilt are secured to an extremely sturdy and rugged tripod. The tripod elevates to about six feet for operation and collapses to less than two feet for easy transport. . Antenna tracker hardware includes antenna array, pan tilt setup, pan tilt controller, heavy duty tripod and all necessary cables and software for operation.
Antenna can be configured to meet a number of frequency requirements. Quick setup in less then 5 minutes.
SPECIFICATIONS
AUTonOMOUSLY POINTS ANTENNA ARRAY AT UNMANNED AIRCRAFT USING TELEMETRY DATA COMING FROM THE UAV
UP TO 9 MILE RANGE LINE OF SIGHT
360° PAN, 90° TILT, AUTonOMOUS TRACKING OF UNMANNED AIRCRAFT
SUPPORTS ANTENNAS FOR BOTH VIDEO AND TELEMETRY
BLACK ALUMINUM TRIPOD EXTENDS TO 6 FEET.
QUICK RELEASE ConSTRUCTION ALLOWS FOR EXPEDIENT ASSEMBLY AND DISSASSEMBLY WITHOUT THE NEED FOR TOOLS.
INCLUDES ALL CABLES NECESSARY FOR OPERATION
OPTIonAL ENCRYPTED DIGITAL DATA link
INCLUDES ConTROL SOFTWARE
OPERATES FROM INCLUDED 11.1V 2100 MAH LITHIUM ION POLYMER BATTERY
SYSTEM INCLUDES
HEAVY DUTY TRIPOD
HEAVY DUTY PAN & TILT MOTOR SYSTEM
GROUND ConTROL SOFTWARE
TECHNICAL SUPPORT
(2) 8 METER USB CABLES
8 METER AUDIO/VIDEO CABLE
OPTION 1:
2.4GHZ 14 DBI PATCH ANTENNA, 8 DBI 2.4GHZ OMNIDIRECTIonAL ANTENNA & DIVERSITY VIDEO RECEIVER, 900 MHZ 9 DBI YAGI ANTENNA & XBEE PRO RADIO MODEM, CABLES, BATTERY
OPTION 2:
5.8GHZ 19 DBI PATCH ANTENNA, 8 DBI 5.8GHZ OMNIDIRECTIonAL ANTENNA & DIVERSITY VIDEO RECEIVER, 900 MHZ 8 DBI PATCH ANTENNA & XBEE PRO RADIO MODEM, CABLES, BATTERY
