General Information:

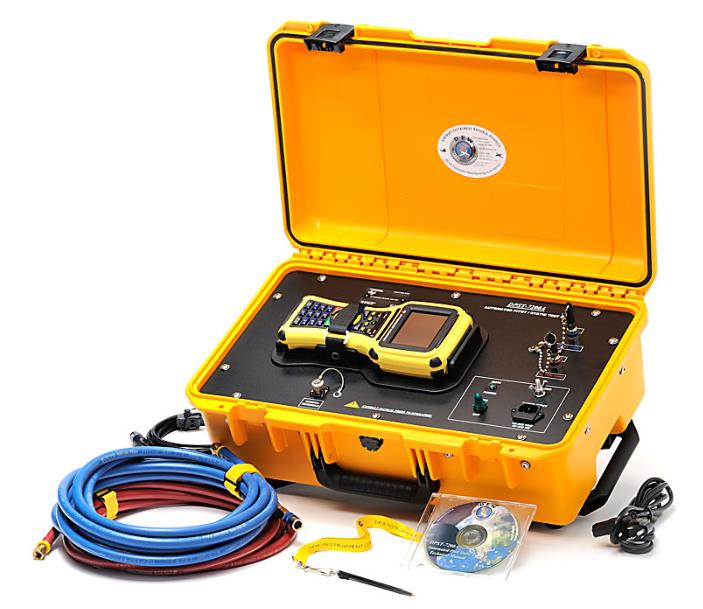

The Model DPST-7200A Digital Pitot Static Test Set is a fully automated flight line dual channel pressure controller designed to provide regulated total (PT) pressure and static (PS) pressure outputs to simulate Altitude, Airspeed and Vertical Speed parameters.

The test set can also be used in a laboratory environment to calibrate instrumentation and other test equipment. A handheld remote terminal provides the operator full control of test set function while observing Altimeters, Airspeed/Mach Indicators and Rate of Climb Indicators.

Standard Features:

Certified to perform Standard FAR 91.411 and FAR 43 App E

Precision microprocessor based with Honeywell sensors-accuracy to +/- 0.020% of full range

Calibration meets or exceeds the published specifications, which are traceable to the National Institute Standards and Technology (N.I.S.T.)

Sunlight readable color TFT handheld remote showing real instrument dial presentation.

Profiles feature allows custom automated set points for aircraft testing or individual instruments

50+ profiles can be stored in the system's handheld for line service/ remote use

Automatic pitot and static leak rate modes perform leak rate tests

"Go To Ground" feature automatically and safely depressurizes Pitot & Static pressure systems to ambient conditions

Handheld Remote specifications include user-friendly keypad interface, full-function Touch Screen, LED function indicator, Humidity, Method 507.4 and Water, IP67 sealed against immersion, MIL-STD-810F, Method 512.4, P-1.

Instruments are protected by a power failure feature, which in the event of an interruption to the electrical supply, cause the pneumatic system to automatically lock and allow safe depressurization to ambient ground conditions automatically without operator assistance.

Vacuum and Pressure pumps are self contained with a 5,000 hour cycle to overhaul.

Internal pressure and vacuum tanks hold pressures for quick start ups and high performance rates.

Smart AC power supply for safe flight line usage - input voltages 85 to 265 VAC / 47 to 420 Hz.

Color coded hoses with self-sealing quick connections to protect aircraft from pressure loss.

Test set is equipped with quick connect fittings, 2 (ea.) twenty ft hoses and one twenty foot terminal cable. Additional cable lengths are available.

Storm Case is watertight, padlockable, and made in the USA to meet applicable requirements of MIL-STD-810F and FED-STD101C.

2 YEAR PARTS AND LABOR WARRANTY
