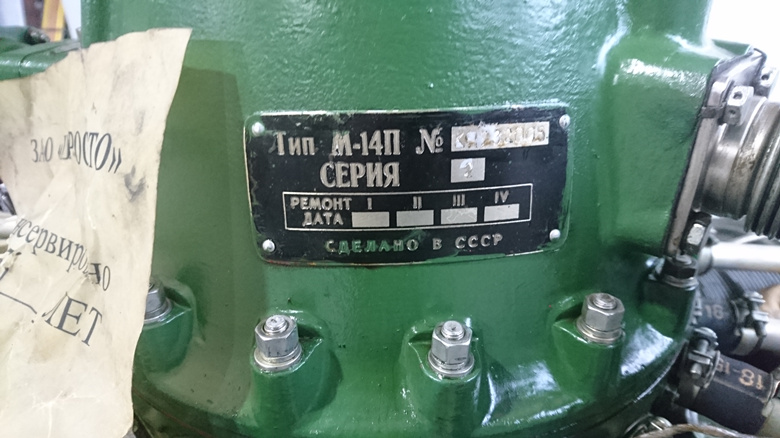

The Vedeneyev M14P is a Russian nine-cylinder, four-stroke, air-cooled radial engine. Producing 360 hp (268 kW), its design dates from the 1940s (Kotelnikov 2005), and is itself a development of the Ivchenko AI-14 engine. The M14P has recently become increasingly popular in experimental aircraft and kit designs such as the Murphy Moose, Radial Rocket, Pitts Model 12, and others. Historically, the engine has been used extensively by the Yakovlev and Sukhoi Design Bureaus.
General characteristics
Type: Nine cylinder, four-stroke, air-cooled radial engine
Bore: 105 mm (4.13 in.)
Stroke: 130 mm (5.11 in.)
Displacement: 10.16 L (620 cubic inches )
Length: 924 mm (36.4 in)
Diameter: 985 mm (38.7 in)
Dry weight: 214 kg (472 lb)
Components
Supercharger: Centrifugal, single-stage, single-speed
Fuel system: Floatless carburettor
Fuel type: Minimum 91 octane Avgas
Oil system: Gear type pump
Cooling system: Air-cooled
Reduction gear: 0.658:1, left-hand tractor
Performance
Power output: 360 hp (268 kW) at 2,900 rpm
Compression ratio: 6.3:1
