Delivery Date:Within 3 days after your order is confirmed
Offer

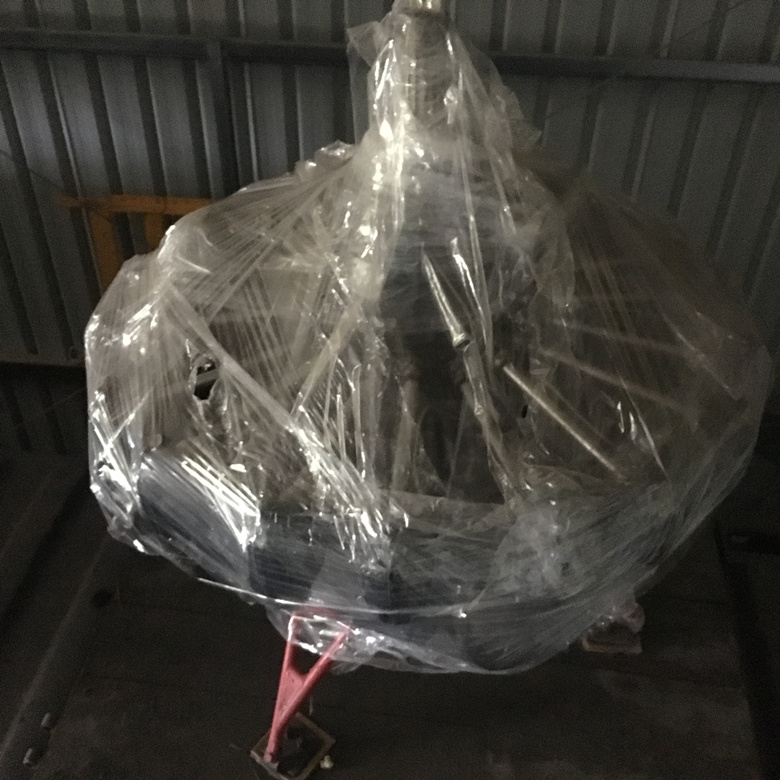

The Zhuzhou HS-6A is a nine-cylinder, air-cooled, 285 hp (212 kW) radial piston engine. The HS-6A is an uprated variant of the HS-6 (Ivchenko AI-14 (260 hp) Chinese production designation). The HS-6A is primarily used in the Nanchang CJ-6A.
General characteristics
Type: 9-cylinder, air-cooled, radial, engine
Bore: 105mm (4.13in)
Stroke: 130mm (5.12in)
Displacement: 10.13 Liters (618 cu in)
Dry weight: 200kg (441lb)
Components
Supercharger: Single stage, single speed, geared centrifugal supercharger
Fuel system: Carburetor
Cooling system: Air
Performance
Power output:
Power (take-off): 285 hp (210 kW)
Power (nominal): 270 hp (199 kW)
Compression ratio: 5.9:1
