The PILOT 12160 Cress is a 3M class electric motor glider balsa kit.
Even if it is said to be a Balsa kit, the body of the glass fiber pod and carbon tapered pipe ensures weight reduction and rigidity, and the assembly is only the main tail wing.
The main wing adopts 8% thin airfoil incorporating recent trends, and has obtained excellent reaction and thermal response.
In addition, due to the versatility of carbon material and a thought-out structure, we achieved both rigidity and weight saving.
The main wing that exceeds 3 m in blade length is made into 3 parts that is convenient to carry and assembles main wing parts precisely laser-cut with 6 divisions, so it is possible to assemble accurately without being twisted even with a narrow work table.
The recommended power unit, the covered outer rotor brushless motor Tahmazo CR - 352010 d, 34 mm aluminum turbo spinner, carbon folded peller RL 12 x 6 will rise comfortably.
A recommended model for modelers who want to challenge themselves to a large-scale glider, and modelers who want a base machine that they can make as their own original glider.
In The Box
- Laser cutting processed wood materials
- Carbon hairpin
- Machined after the strip
- Glass / Carbon completed fuselage
- Plastic canopy
- Fiberglass control horn
- Carbon rod for linkage
- Push rod guide pipes
- Japanese assembly instructions and Main wing reduced drawing
NOTE:
* This aircraft is an assembly kit made of balsa.

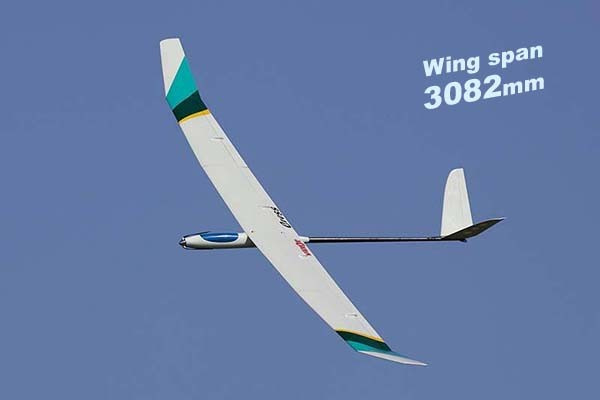

* The photo body is an example of assembling a kit and finishing it by pasting a film.
* There are many parts that require technology and experience to produce.
* Major parts are processed accurately at the factory.
* There are many parts that require technology and experience to produce.
* Film and adhesive are not included in the kit.
* The contents of the kit, design, structure etc. are subject to change without prior notice.
Aircraft Specifications
· Length: 1382 mm
· Width Wing Span: 3082 mm
· Wing Area: 58.7 dm 2
· Weight: 1590 to 1650 g
· Motor: Tahmazo CR-352010 d (48853)
· RC Mechanical Radio: AL (2), EV- RD, FL (2), ESC
· After splitting 3 split wings
· Difficulty of flight : for intermediate / advanced users
· Completed state of the aircraft: balsa assembly kit
· Power unit that can be installed: electric motor
