Brand:Top Flite
Delivery Date:Within 3 days after your order is confirmed
Details

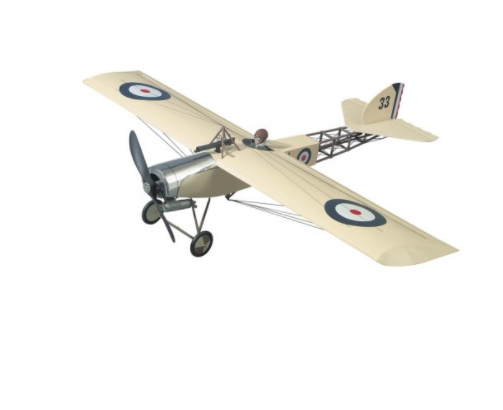

The Elder 40 is a classic aircraft which will attract attention on every airfield. This is wher nostalgia meets modern technology. The Elder 40 construction was CAD-designed, comprising precisely-fitting wooden components, and can be completed in just a few weekends. It makes an ideal second model, capable of performing precise maneuvers with great agility, and possessing excellent aerobatic training capabilities. Detailed illustrated building instructions provide for uncomplicated assembly.
Technical specification:
Wingspan: 1651 mm
Length: 1257 mm
Wing area: 50 dm2
Weight approx.: 2490 g
Wing loading: 50 g/dm2
RC-functions:
Ailerons, elevator, rudder, motor
Required:
- 2-stroke Motor 6.5 ccm or 4-stroke Motor 10 ccm
- min. 4-channel RC-System
- Standard Servos with at least 4 kg torque, 4 pieces
- 4,8 V Receiver Battery 1800 mAh and up
Recommended accessories:
- Order no: TACJ2652, RC-Set TTX650
- Order no: TACM0235, Servo TSX35
Includes
- Perfectly fitting, CAD precision-cut wooden construction
- Windshield
- Landing gear
- Detailed illustrated building instructions
- Decal sheet
- RC and control linkage hardware
Additional Information
Manufacturer: Top Flite
Specification
Wingspan: 65" (1651mm)
Wing Area: 778sq in (50dm2)
Weight: 5.5-7.0lb (2495-3175kg)
Wing Loading: 16.3 - 20.7oz/sq ft (50-63g/dm2)
Length: 49.5" (1257mm)
Airfoil: Flat bottom
Center of Gravity: 3½" (89mm) Back from the wing's leading edge
at the fuselage sides.
Control Throws- Low Rate High Rate
Ailerons: Up & Down ¼" (6mm) 3/8" (9.5mm)
Elevator: Up & Down 7/16" (11mm) 5/8" (16mm)
Rudder: Right & Left ½" (13mm) ¾" (19mm)
Incidence-
Engine Down Thrust: 5°
Engine Right thrust: 2°
Wing: 0°
Stabilizer: 0°
