Delivery Date:Within 3 days after your order is confirmed
Product Features:

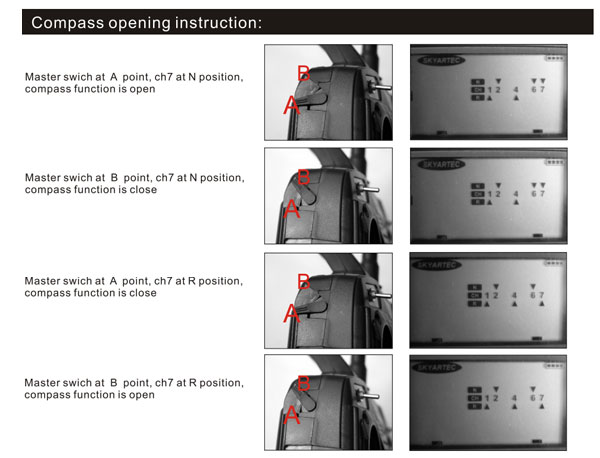

- Compass Function: open compass function, 4ch(center the direction channel), butterflyS at ground level, the flight attitude will come back to the attitude direction when power on the batterys.
- Supported 7.4V or 11.1V lipo-battery.
- No additional welding
- Adopts excellent quality components, sta ble and superior performance. Use 32bit singlechip
- Integ ration of all components, adopts th ree-axis acceleration sensor and three-axis angular rate sensor
(6 axis gyro)
- Easy to use and debug, applies to multifarious multi-rotor models
- 3 axia Gyro sensitivity and set the main function can be adjusted by the position adjuster
- Support for multi-axis X type
- Output ports have up to six groups, can d rive ESC or servo.
- Standard PWM signal output, support conventional PWM ESC (Suggest using SKYARTEC series high-speed ESC) and all kinds of servo (digital or analog)
- The receiver can be directly connected to the flight control board, without a special decoder, or alter
receiver
- The existing version can achieve stable hover and excellent handling (depends on a reasonable mix,
commissioning and operational experience), the mode of operation is similar to the rc helicopter, but
easier to adapt
- Can complete some incredible stunt flying skills, also can stable battery life, to meet small scope aerial
photo to replac the complicated and expensive rc helicopter
- Support firmware upgrade (need to buy programming), and unceasing improving performance
- Self-stabilizing system, support fixed-point hovering
- Can quickly eliminate the inertia caused by flig ht, fast and stable.
- Have aerial photo PTZ link function CAMP CAMR
Product configuration:
Transmitter: NASA701 7ch LCD

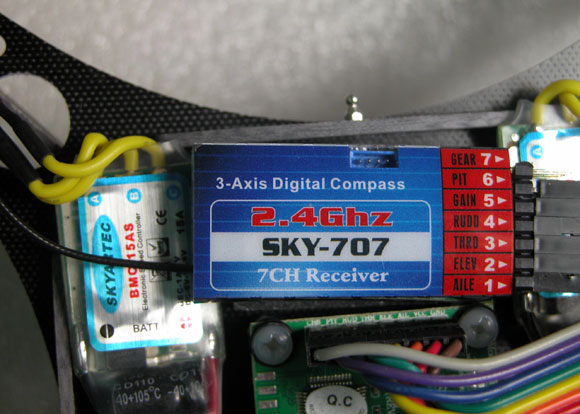

Receiver: SKY-707 3-Axis Compass receiver

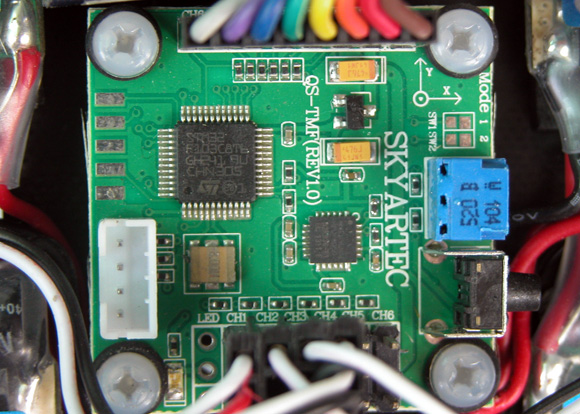

control system: Butteryfly flight control board

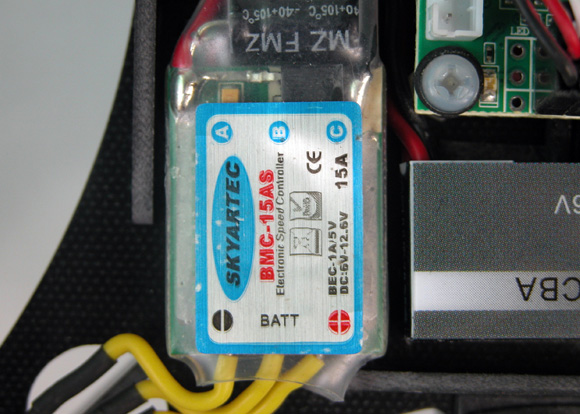

ESC: 15AS - 4pcs
Battery: 7.4V 1300mah
Chargers: balance charger & 12V power adaptor

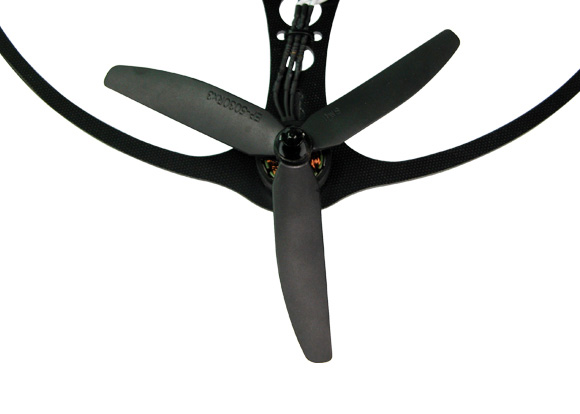

Motor: 1804 2000-2200KV - 4pcs (Supported 7.4V or 11.1V lipo-battery)
Product specification:
Size: 267mm x 267mm x 100mm
Weight: 300g
