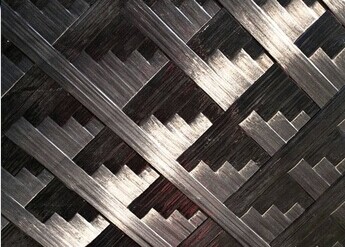

CFRP PLATES
CGB manufactures innovative carbon-plates up to a size of 2800 x 1200 mm with different wall thicknesses from 2mm.
In contrast to CFRP-plates made of common prepregs we have the possibility to realize arbitrary fiber angels of +/-10° or +/-30°. Thus, the mechanical properties and thermal expansion can be adjusted along defined directions. This results in a higher strength and a lower weight compared to quasi-isotropic carbon-plates.
The carbonplates can be ordered cut-to-size and including holes, pockets, nuts or any other type of milling operation.
FEATURES OF CARBON-PLATES:
- size: up to 28001200 mm
- contour tolerances according to ISO 2768-m, thickness tolerances according to ISO 2768-c
- Tg up to 125°C (higher temperature resistance on request)
- matt glossy surface or with peel-ply for glue preparation
- arbitrary fiber angels
- finish-machined
Mechanical properties and individual design available on request.
APPLICATION OF CARBON-PLATES:
- Jigs and fixtures manufacture
- Optical systems
- Model construction
- Transportation and handling-systems
