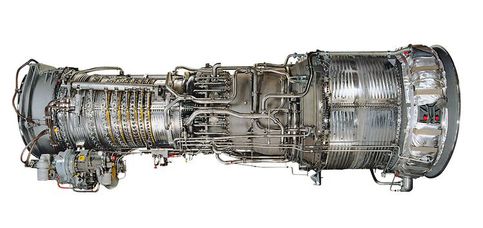

The LM2500™ is a GE industrial gas turbine which derives from the CF6-6 aircraft engine. It has been maintained and repaired by MTU since 1981. Unlike the LM6000™ gas turbine, the LM2500™ is designed with a single-rotor gas turbine and an aero-dynamically coupled power turbine. The LM2500™ consists of a sixteen-stage compressor, a fully annular combustor, a two-stage high-pressure turbine and a high-efficiency power turbine. The LM2500™ gas turbine is the most popular aero-derivative in the 20 to 25 MW class.

The LM2500+™ is an uprated version of the basic LM2500™ and offers 30.5 MW of power.

• Generator at “hot” end
• Single-shaft gas generator with free power turbine

• Stage 1 and 2 high-pressure turbine disks

• Repair and overhaul at MTU Maintenance Berlin-Brandenburg

• Power generation
• Mechanical drive systems / oil and gas extraction
• Marine propulsion
• Combined Heat and Power ("Cogen")
