Delivery Date:Within 3 days after your order is confirmed

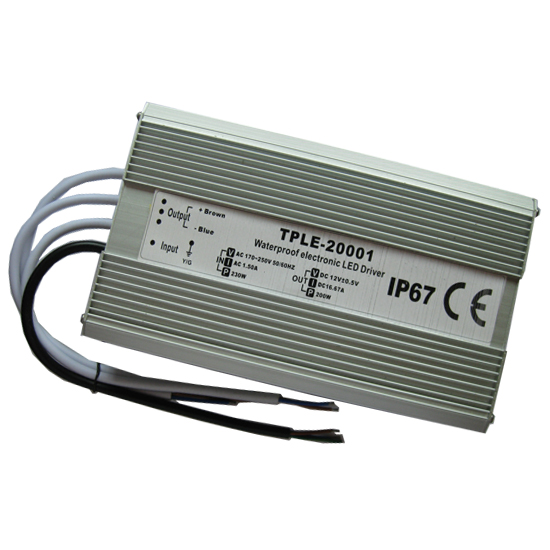

Product name：12V 200W Waterproof LED power supply
Item：TPLE-12200
Details：
Model:TPLE-12200
Description:
Constant voltage LED power supply/LED driver,Aluminum Shell
Input Rated Voltage : 90-130VAC/170-240VAC
Input Voltage Range : 90 to 264VAC
Input Rated Frequency : 50/60Hz
Input Frequency Range : 47Hz to 63Hz
Input Current:2.5A Max
Input Inrush Current:50A Max
Input Un-load Power Consumption:0.5W Max@115VAC/230VAC
Efficiency : 83% Min
Rated Output Power: 200W
Output Voltage & Current : 12VDC 16.66A
Output Load Regulation: ±5%
Dielectric Withstand Voltage : 3KV 3s
Leakage Current : 0.25 mA At 230Vac
Size:235x125x53MM Weight:2.7KG
Protection : OCP OVP SCP OPP
Operating Temperature: -10 to 40℃
Storage Temperature: -10 to 85℃
With waterproof IP67, dampproof and dustproof
