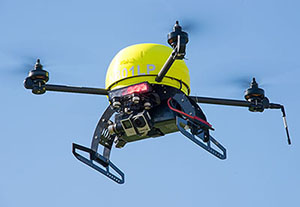

The Rapidly Deployed Aerial Surveillance System (RDASS) HD by Leptron UAS, Inc. is a professional-grade vertical takeoff and landing platform engineered for stability, versatility, and remote data collection. The RDASS HD is developed with a unique aerodynamic design and advanced electronics that maintain incredible aircraft stability even in unpredictable wind conditions. Enhanced safety features such as intelligent fault detection- automatically prompts the RDASS HD to safely return home and land in the event of lost communications, low battery, or when commanded by the pilot.
The RDASS camera mounting system accepts Leptron stabilized or fixed gimbal configurations. Each gimbal is perfectly balanced to eliminate excessive power draw caused by in-air leveling corrections. Additionally, the RDASS HD can be equipped with navigation LEDs, remote video viewing, and a ground control station. With dozens of user defined system configurations available, the RDASS HD is an ideal choice for industry professionals.
RDASS Model: HD (High Definition)
Airframe Materials: Lightweight 3D Printed ABS and Carbon Fiber
User Selectable Cameras
Payloads: Fixed, Stabilized Single or Dual Camera Combinations
Video: High Definition Output, HD Remote Video Streaming Compatible
Endurance: 20 Minutes
Flight Modes: Manual and Fully Autonomous
Intelligent Fault Detection: Auto Return Home due to either Lost link or Low Battery
Dome Colors: Black, Red, or Yellow
Platform Type
Rotor Tip to Rotor Tip Dimensions
Operating Temperature
Take-off Weight
Hovering Accuracy (GPS Mode)
Maximum Yaw Angular Velocity
Maximum Tilt Angle
Maximum Horizontal Flight Velocity
Wind Limits
Vertical Speed Limits
Supported Flight Battery
Operational Ceiling
Maximum Payload
Operational Range
Maximum Power Consumption
Multi-Rotor (four fixed-pitch rotors)
31 1/2 inches (80.1 cm)
-10°C – 50°C
7 lbs. 13 oz. (3539g)
Vertical: ±31 in. (0.8 m)
Horizontal: ±98 in. (2.5 m)
180°/s
35°
35 mph (30 knots, 15 m/s)
35 mph (30 knots, 15 m/s) continuous or gusts
of 25 mph (22 knots, 11 m/s)
800 feet/min. (4.1 m/s)
LiPo 6S
12,000 feet DA (3650 m)
1 lb. 8 oz. (680 g)
1.5 mile (2.4 km)
800 Watts (1.1 hp)
