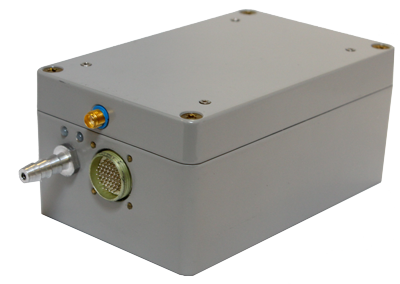

CompaNav-2M is a GNSS-aided MEMS navigation system designed specificially for aviation applications. This compact low-power system works in any type of fixed-wing or rotor air vehicle (manned or unmanned) providing a complete navigation solution at a competitive total cost of ownership. It requires only DC power supply and any device capable of accepting RS-232 data.
Output data
Data rate 50 Hz
Interface RS-232 (RS-422 optionally)
Cold start 30 s
Data format binary
Environment
Operating temperature -40…+75°C
Storage temperature -60…+80°C
Humidity 5%...95%
Atmospheric pressure 450...850 mm Hg
Impact 20 g (5 ms)
Vibration 2 g (50...2000 Hz, sine)
Electrical
Input voltage 12...30 VDC
Power 2 W (max)
Physical
Size 125x8057 mm
Weight 0.7 kg
Operating ranges
Roll, Pitch ±180°, ±90°
Accelerations ±5g
Heading 0...360°
Angular rate ±250 °/s
Max. calibrated altitude 6 000 m
(for barometric altimeter) 18 000 ft
