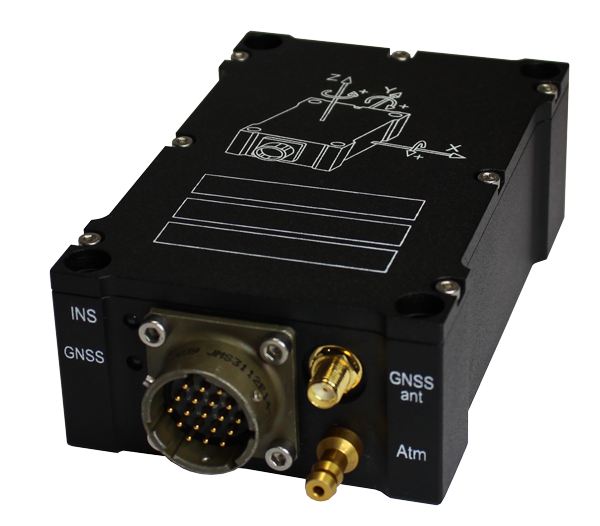

CompaNav-3 is a miniature GNSS-aided MEMS navigation system, designed specificially to meet the requiremrents of weight-sensitive applications. Compact navigation system outputs uninterrupted navigation solution without time lags even during the periods of short (up to 10 minutes) GNSS signal outages. Available in frameless modification for embedded solutions.
Output data
Output rate 50 Hz
Interface RS-232, RS-422
Cold start 30 s
Data format binary
Environment
Operating temperature -40…+75°C
Storage temperature -60…+80°C
Humidity 5%...95%
Atmospheric pressure 450...850 mm Hg
Impact 20 g (5 ms)
Vibration 2 g (50...2000 Hz, sine)
Electrical
Input voltage 12...30 VDC
Power 2 W (max)
Physical
Size 145x8039 mm
Weight 0.55 kg
Operating ranges
Roll ±180°
Pitch ±90°
Heading 0..360°
Acceleration ±5g
Angular rate ±250 °/s
